ADAPTIVE TILT ROUND
The lediere Adaptive Tilt is a premium bespoke outdoor luminaire designed for precision and performance in architectural environments. With -5°~15° beam tilt capability and powered by CREE LED, it offers superior illumination with Ra>90 color rendering and customizable beam optics. Crafted from marine-grade stainless steel (SS316) and tempered glass, the luminaire ensures exceptional durability and weather resistance with IP67 ingress and IK10 impact protection. Available in multiple finishes (White, Black, or Custom), it provides complete design flexibility for bespoke projects.
Single color variants are available in both mains HV AC100-300V and LV 12VDC/24VDC however RGBW variant is available only in LV 12VDC/24VDC. This series supports switching, DALI, TRIAC, 0–10V, DMX512 or RDM control systems. With an efficiency of 90 lm/W, a lifespan of 80,000 hours, and reliable operation from –25°C to +50°C, this fixture delivers performance built to last. Designed for ground installations, the Adaptive Tilt Series blends elegance with engineering precision.
- available in custom body finishes Black, SS or Custom.
- custom cable lengths available to fit any project spec

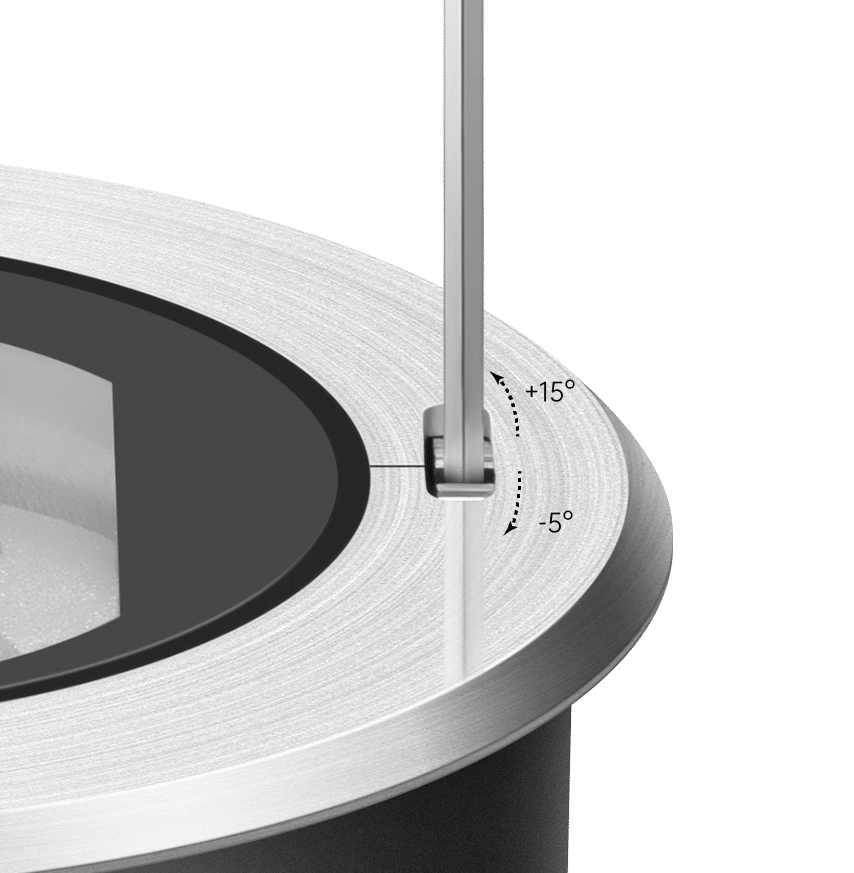

- -5°~ 15° adaptive tilt mechanism ensures precise beam adjustment

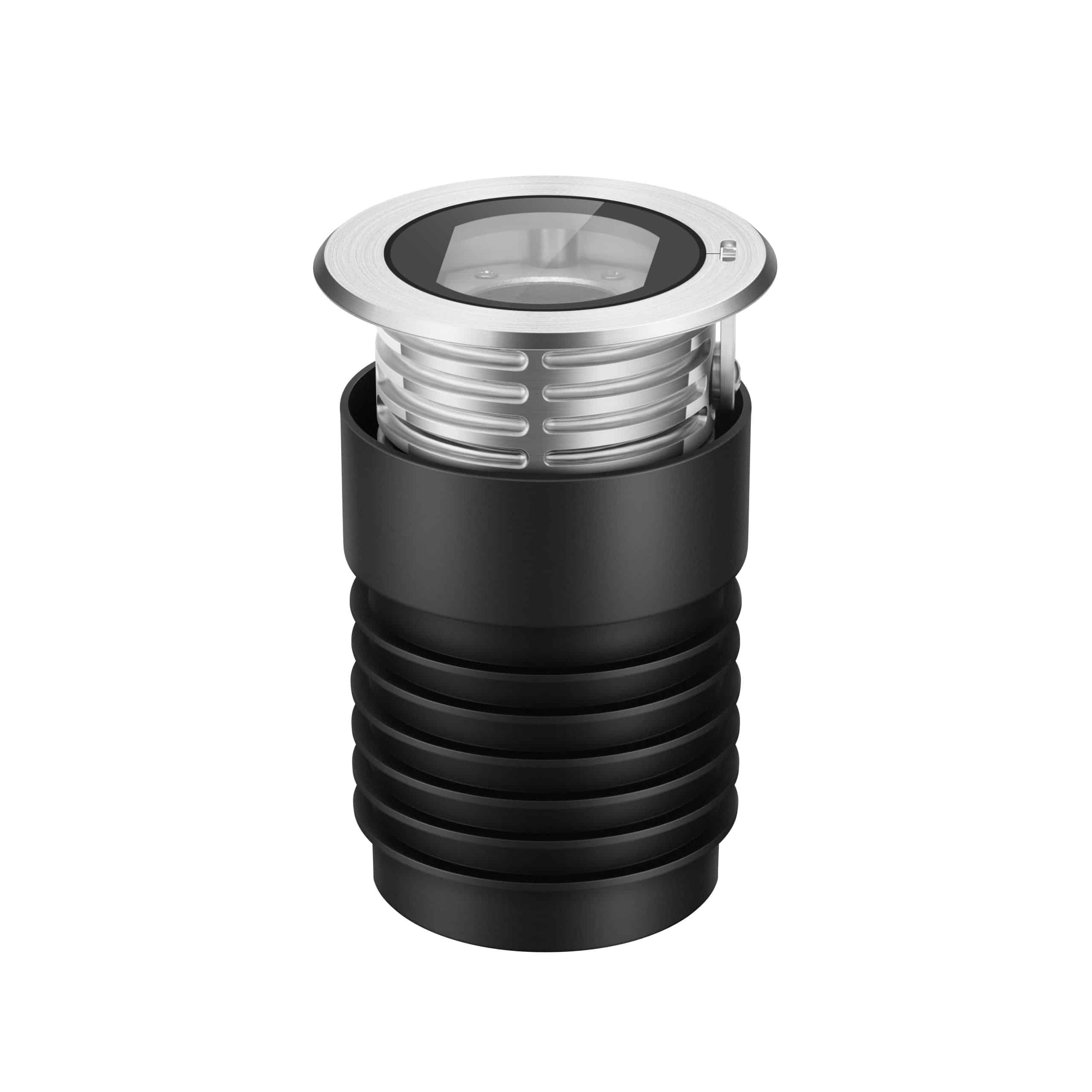

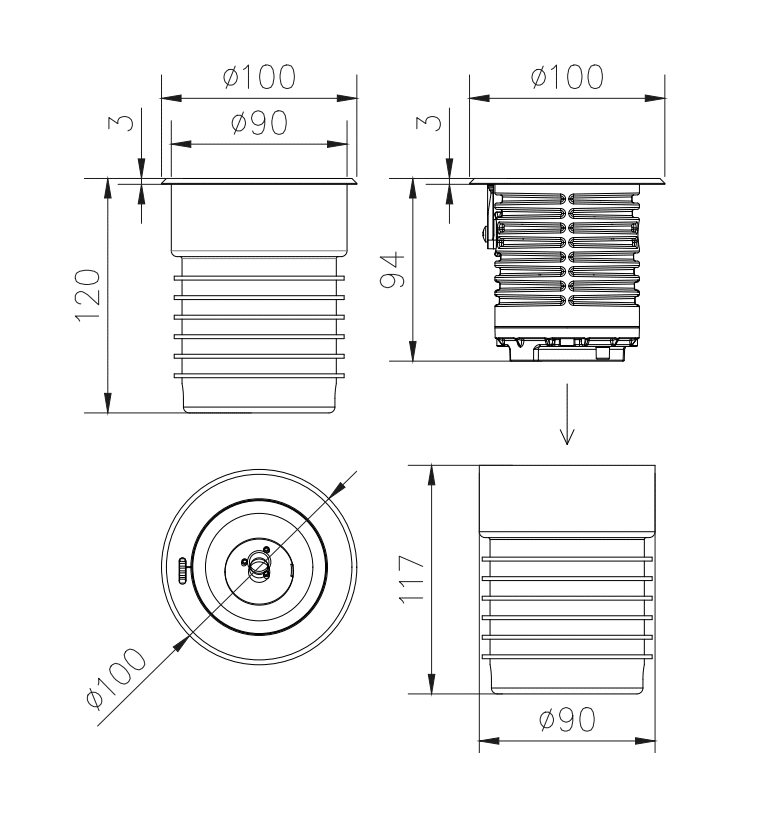

ATR100
power
6W (single color) | 10W (RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/8°/12°/20°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
120units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR100
6
10
DC12
DC24
AC
27
30
40
60
RGBW
2
8
12
20
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10

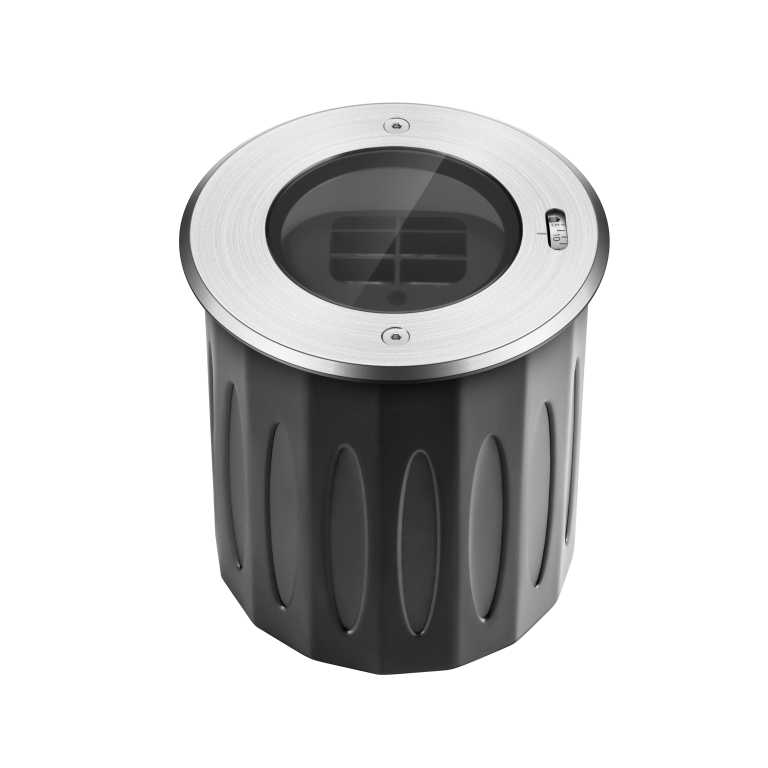

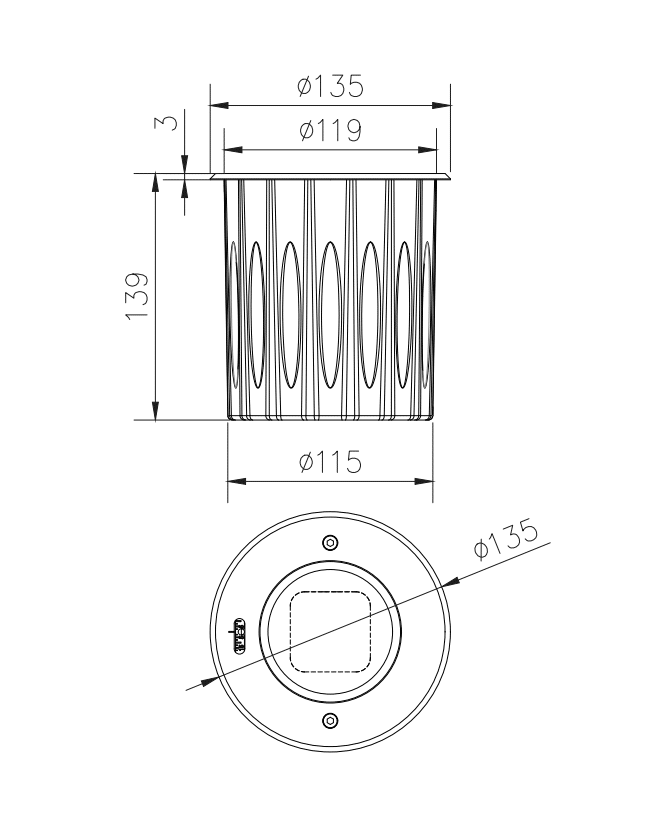

ATR135
power
10W (single color/RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/4.5°/6°/8°/10°/12°/15°/20°/24°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
120units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR135
10
DC12
DC24
AC
27
30
40
60
RGBW
2
4.5
6
8
10
12
15
20
24
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10

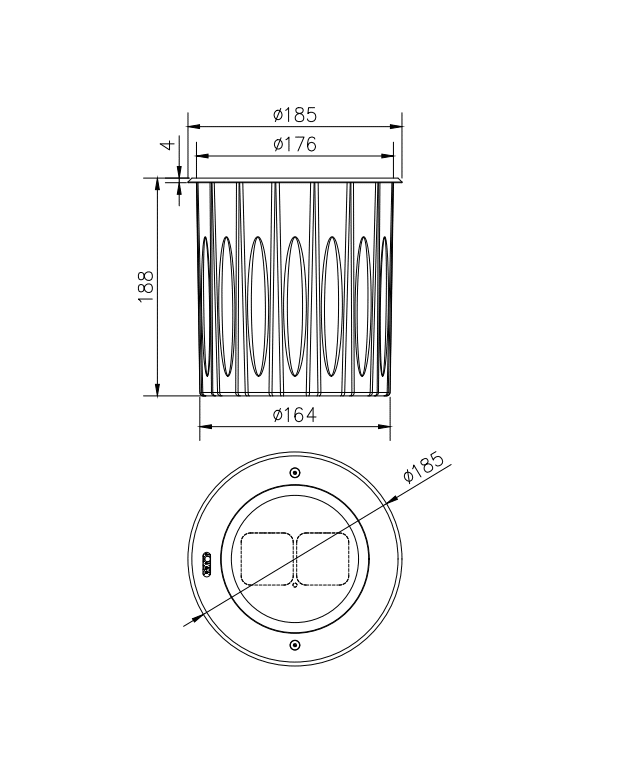

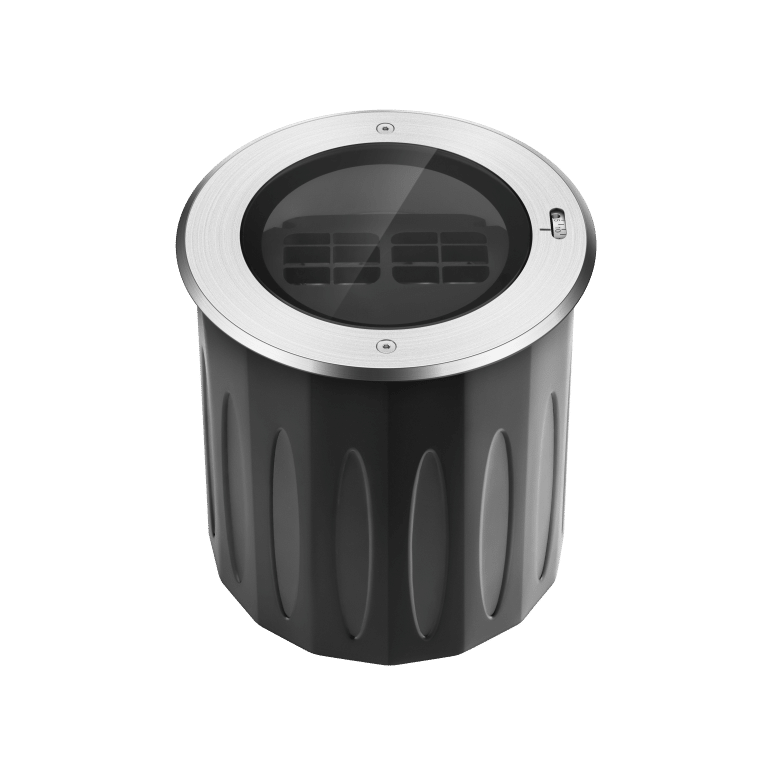

ATR185
power
20W (single color/RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/4.5°/6°/8°/10°/12°/15°/20°/24°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
60units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR185
20
DC12
DC24
AC
27
30
40
60
RGBW
2
4.5
6
8
10
12
15
20
24
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10

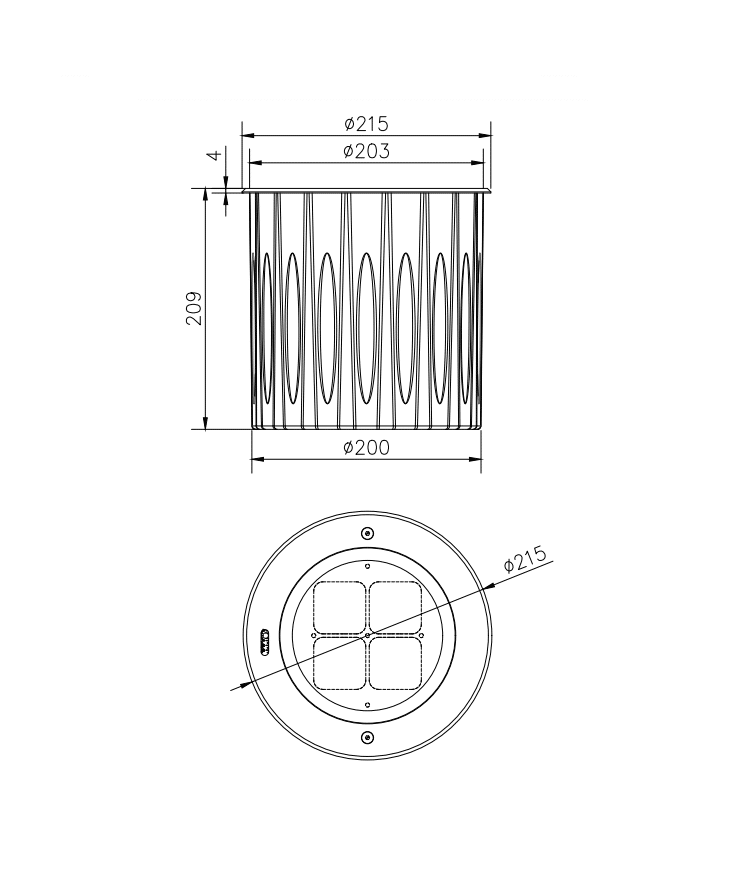

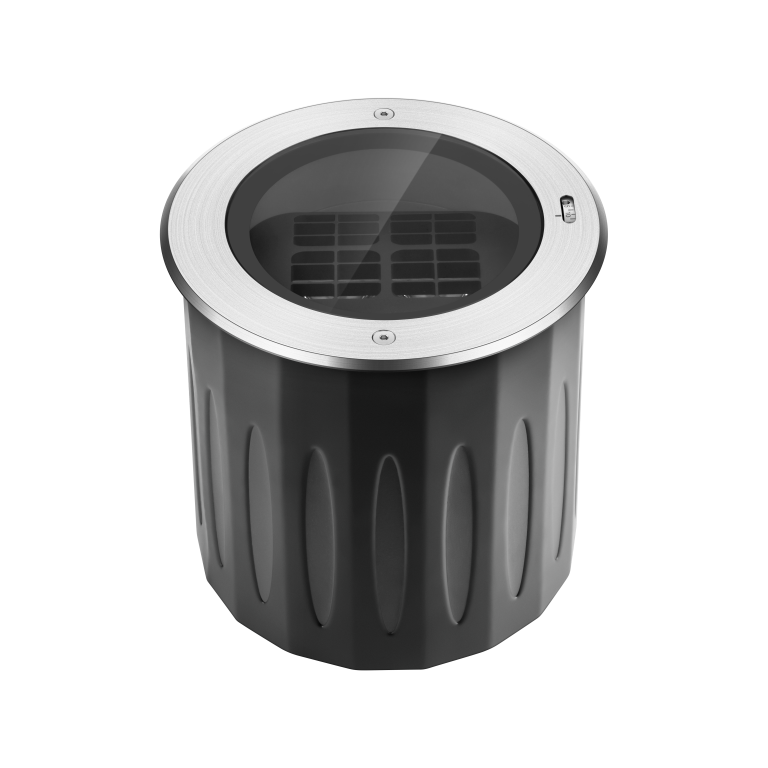

ATR215
power
30W (single color) | 40W (RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/4.5°/6°/8°/10°/12°/15°/20°/24°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
30units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR215
30
40
DC12
DC24
AC
27
30
40
60
RGBW
2
4.5
6
8
10
12
15
20
24
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10

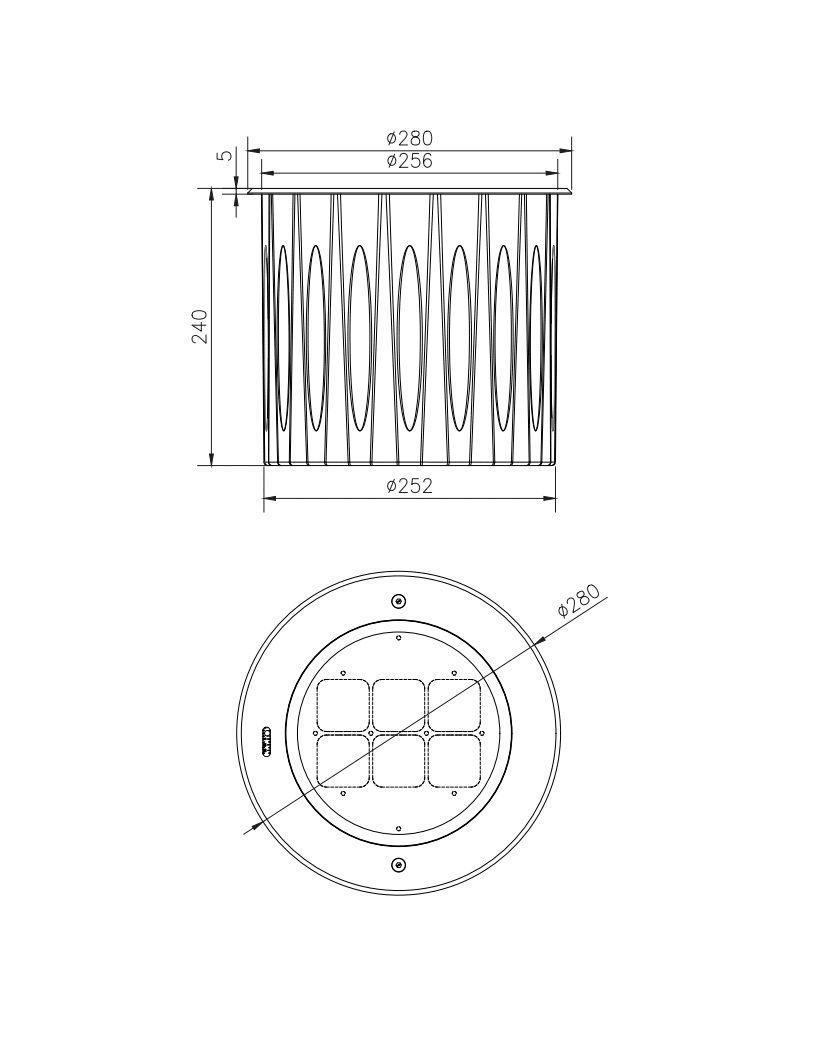

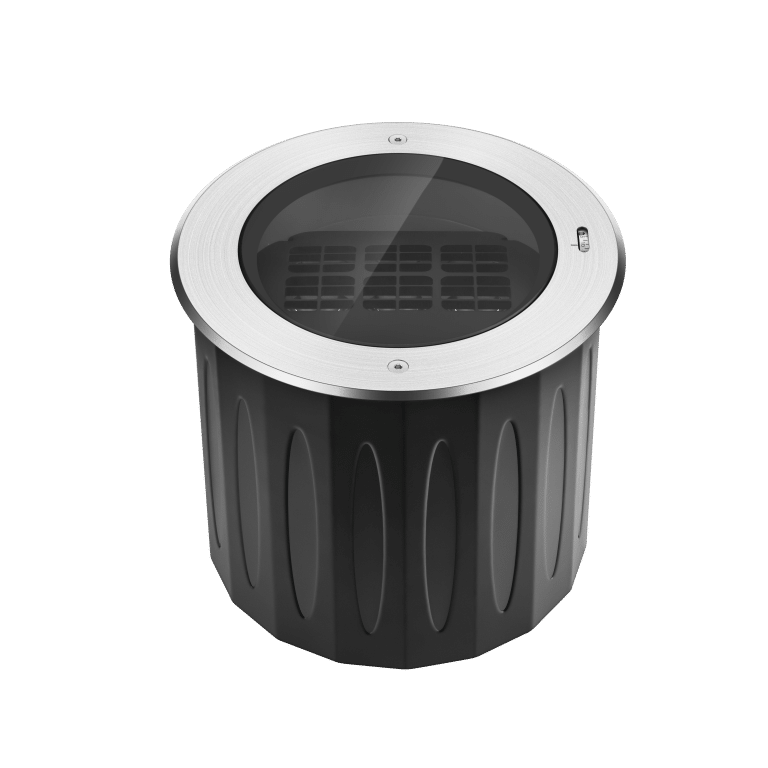

ATR280
power
50W (single color) | 60W (RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/4.5°/6°/8°/10°/12°/15°/20°/24°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
20units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR280
50
60
DC12
DC24
AC
27
30
40
60
RGBW
2
4.5
6
8
10
12
15
20
24
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10

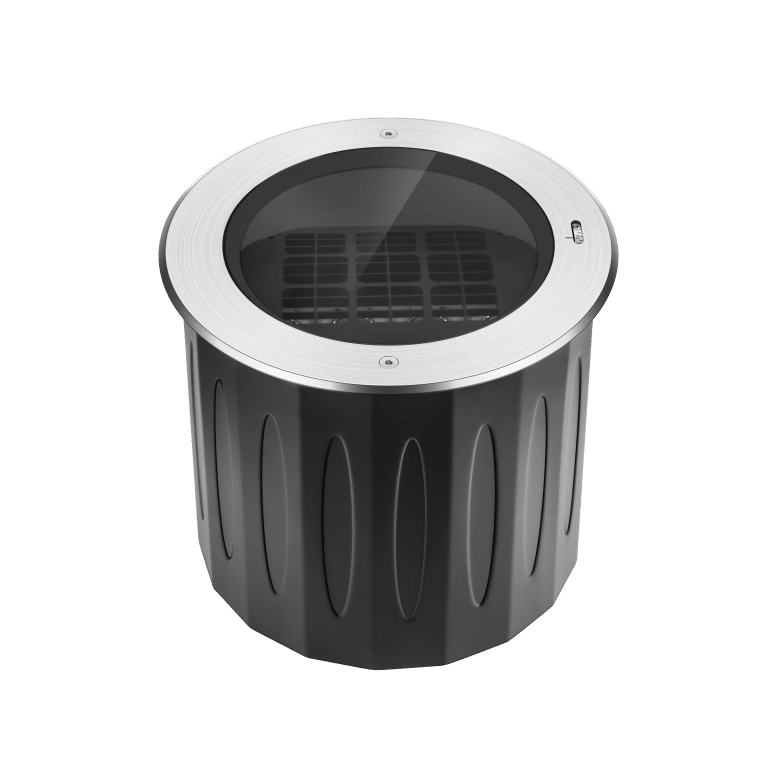

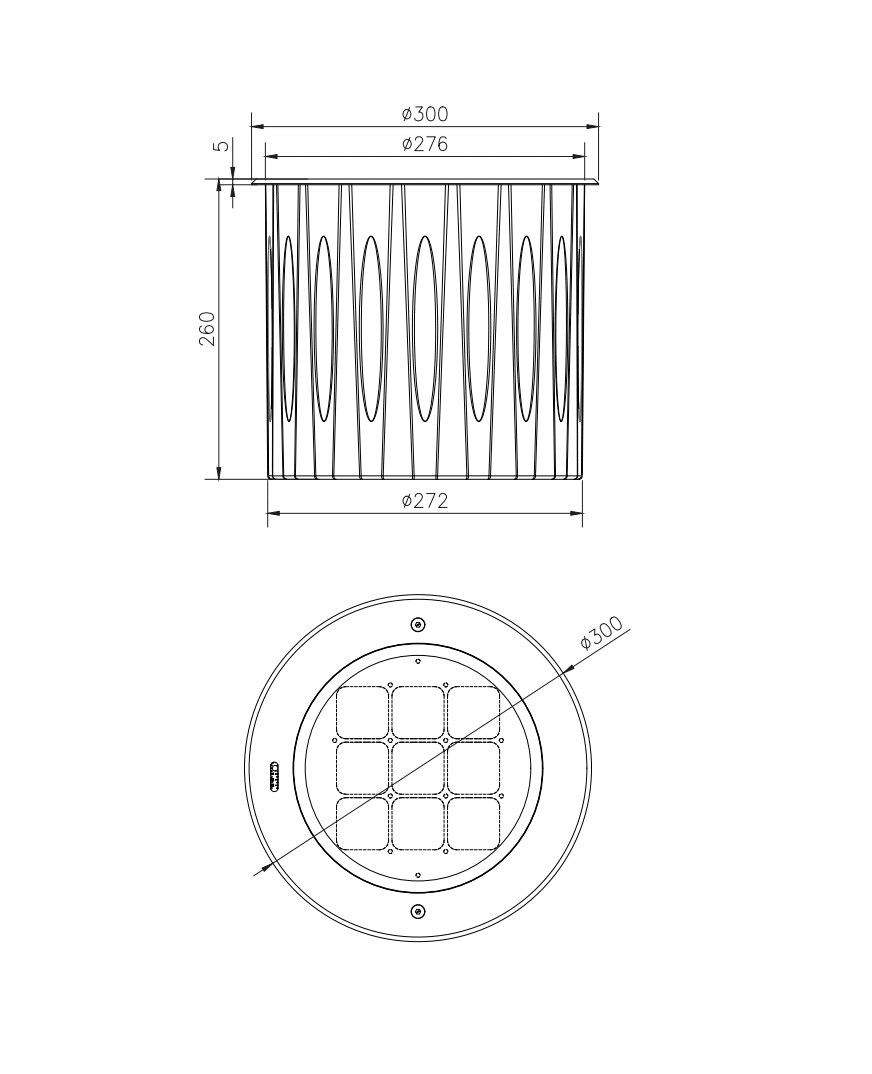

ATR300
power
80W (single color) | 90W (RGBW)
built
marine grade SS316 / tempered glass
input volt
DC12V / DC24V /AC100-300V
source
CREE
efficiency
70-90lm/W
color temp
2700K/3000K/4000K/6000K/RGBW
optics
2°/4.5°/6°/8°/10°/12°/15°/20°/24°/30°/45°/60°/bespoke
control
switching/DALI/TRIAC/0-10V/DMX512/RDM
installation
ground, recessed applications
ingress
IP67
impact
IK10
ambient humidity
10% – 90%
operating temp
-25°c ~ +50°c
LED life
80,000hrs
max series connectivity
14units (HV) / 7units (LV)
cable
waterproof; bespoke lengths
ordering code key
model
power
volt
CCT
optics
control
cable
ATR300
80
90
DC12
DC24
AC
27
30
40
60
RGBW
2
4.5
6
8
10
12
15
20
24
30
45
60
S
DA
TR
0-10
DMX
RDM
2
5
10
