OUTDOOR BULKHEAD GS315

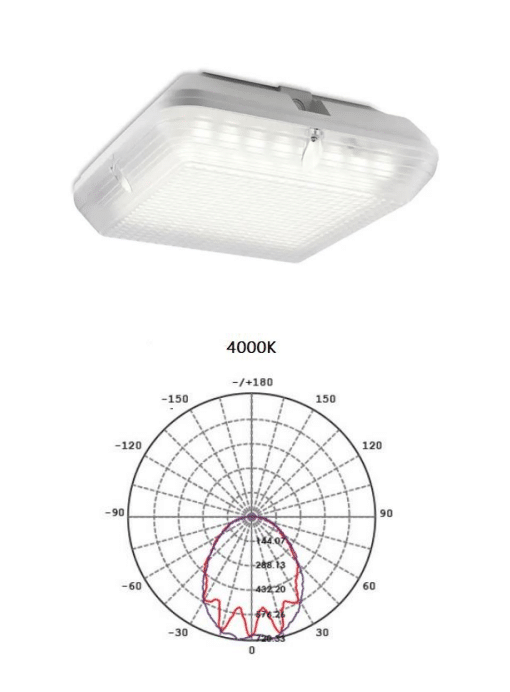

The Ledeire Outdoor Bulkhead GR316 is a durable LED luminaire engineered for extreme outdoor conditions. Featuring a 20W LED delivering 2200–2400 lm with Ra>80, it offers color temperatures of 3000K, 4000K, or 6000K and a 110° beam angle for efficient illumination.

Constructed from IK10-certified aluminum LM6 with a fire-retardant polycarbonate diffuser, the GR316 provides impact resistance, anti-corrosion protection, and 50,000 hours of reliable LED performance. Operating on AC 220–240V with Philips or Lifud driver options, it supports ceiling or wall installation with IP65 ingress protection and a 0.25m cable with IP65 M20 PVC gland.

Optional microwave sensor dimming (SD) allows adjustable hold times, standby periods, dimming levels, daylight thresholds, and 1–10V output, suitable for ceiling mounts up to 4m with a 12m detection range. Lightweight yet rugged at 1.8kg, the GR316 is a versatile solution for secure, high-performance outdoor lighting.

  • impact resistant aluminum with fire retardant polycarbonate diffuser
  • suitable for outdoor extreme conditions
  • anti corrosive & 50,000 hours LED life
    microwave sense corridor dim version available on request (SD)

microwave sense dim version (SD)

  • adjustable hold time 5sec/ 30sec/ 1min/ 10min
  • adjustable standby period 0s/ 30s/ 20min/ ∞
  • adjustable standby dimming level 10%/ 20%/ 30%/ 50%
  • adjustable daylight threshold 2lux/ 10lux/ 50lux/ disable
  • 1-10v output | mount height 4m | detection range of 12m max (ceiling mount)

Technical Specification

type

125497310

code

code GS315. __ . __

built

aluminum LM6 / polycarbonate lens IK10

input volt

AC 220-240V

source

LED20 W / Ra>80 / 2200-2400LM

driver

philips/lifud

color temp

3000K/4000K/6000K

beam

110°

installation

ceiling/wall

ingress

IP65 certified

impact

IK10 certified

weight

1.8kg

operating temp

-25°c – +40°c

cable

0.25M

cable gland

IP65 M20 PVC

Ordering Code Key

code

GS315.30.SD

spec

square vandal resistant outdoor bulkhead 3000K Sensor Dim

GR316.30.SD

Looking for a bespoke product? Contact us now. You define We design!
