POOL PNT146

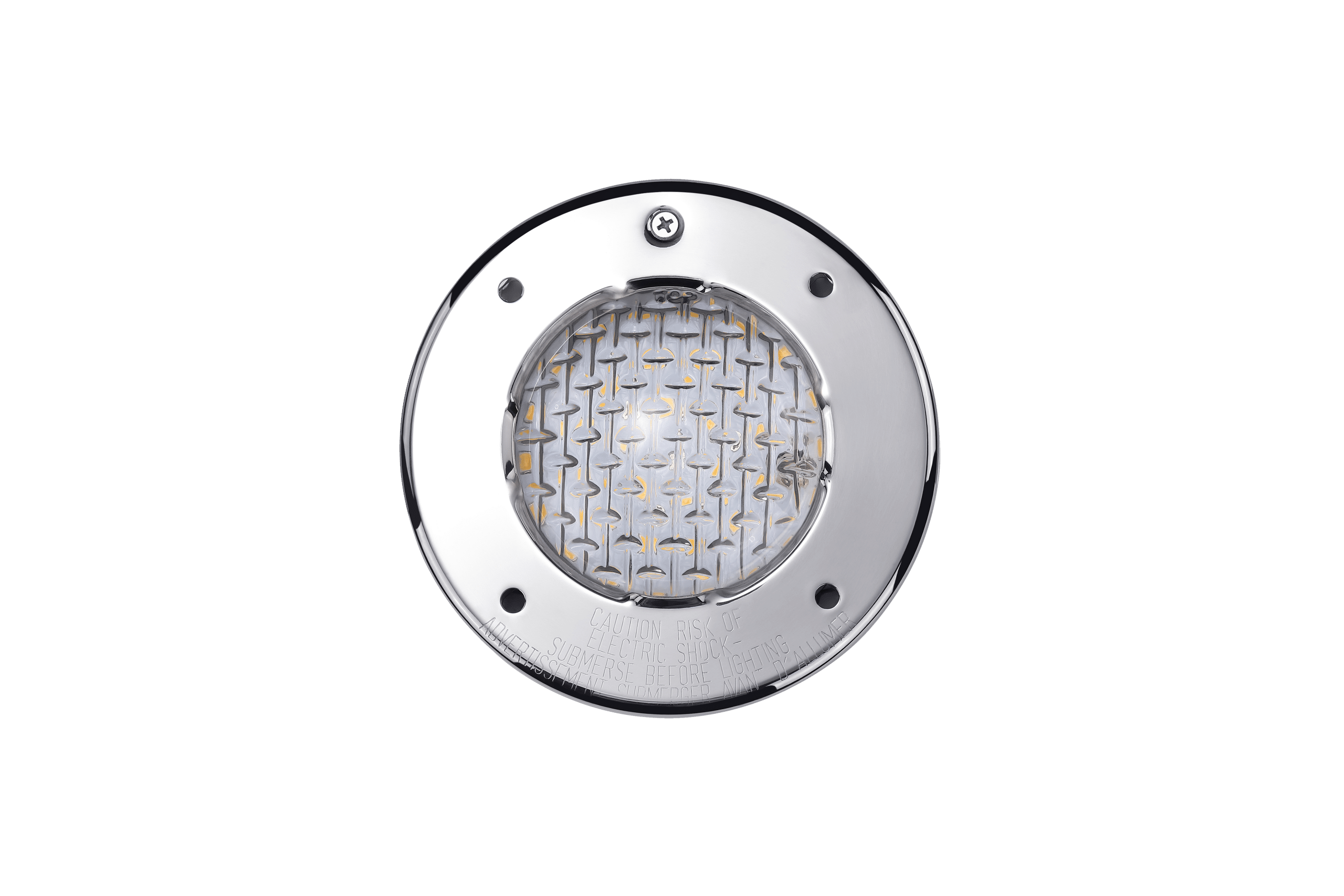

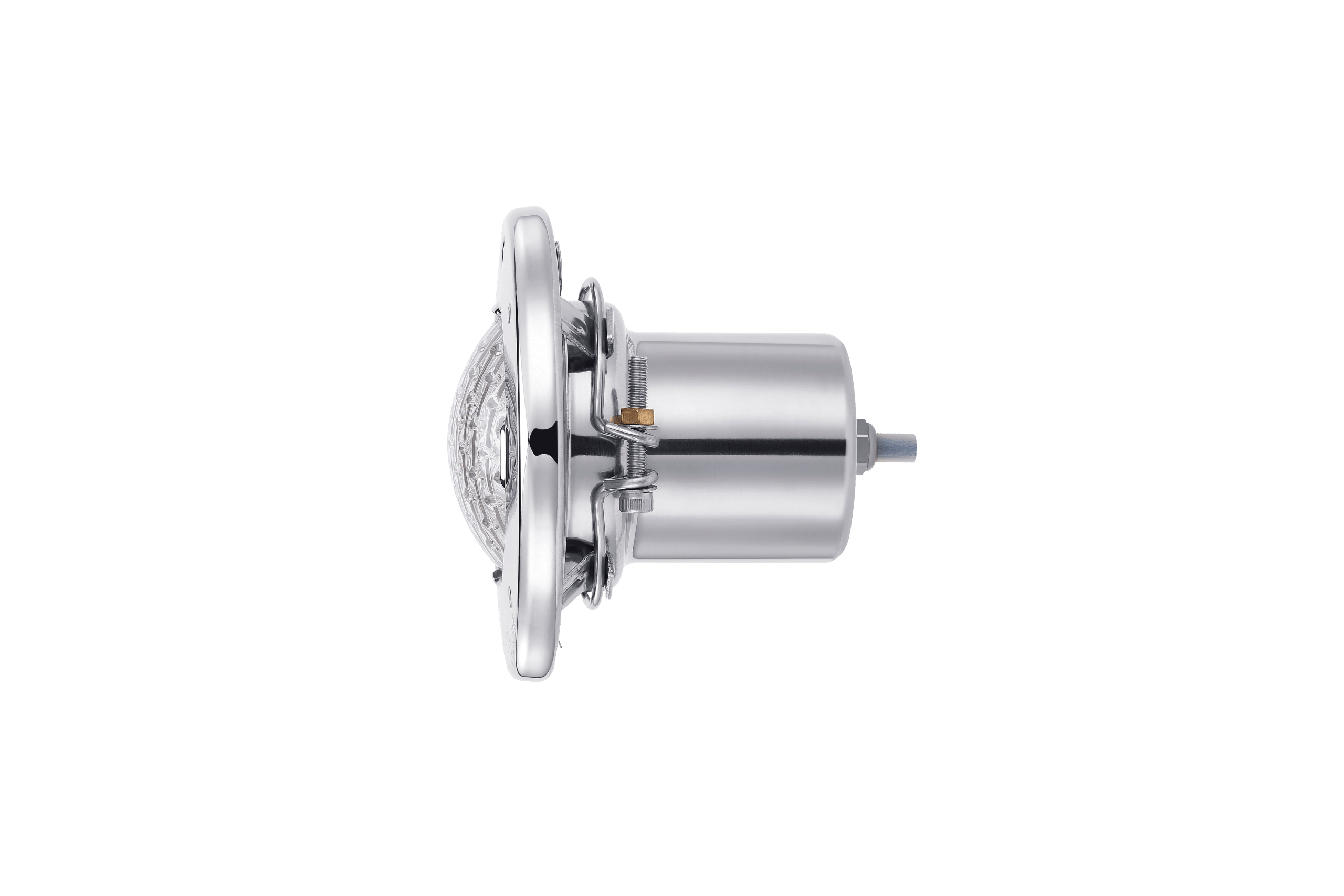

The Ledeire POOL PNT146 is a high-performance submersible luminaire engineered for pools and water features, delivering superior illumination with CREE LED sources available in 12W, 18W, or 25W. Offering color temperatures from 2700K to 6000K, including RGBW options, it achieves Ra>90 color rendering and 70 lm/W efficiency, with beam angles of 30°, 90°, or 120° for tailored water lighting effects.

Constructed from marine-grade stainless steel (SS316) and tempered glass, the PNT146 ensures maximum durability with IP68 ingress protection, and operates reliably in temperatures from –40°C to +50°C. Compatible with multiple niche standards, including Pentair and Hayward, it can be customized for specific cable lengths and color requirements, with or without concrete pool niches.

Operating on AC 12V (Class III), the luminaire supports dimming via Switching or DMX and delivers a 50,000-hour LED lifespan. Supplied without a power drive, it includes a 0.5m H05RN-F 2×1.0mm² cable and IP67-rated nickel-coated copper or stainless steel gland, providing a versatile and reliable solution for bespoke aquatic lighting.

  • can be customized to R/G/B/Y color requirements

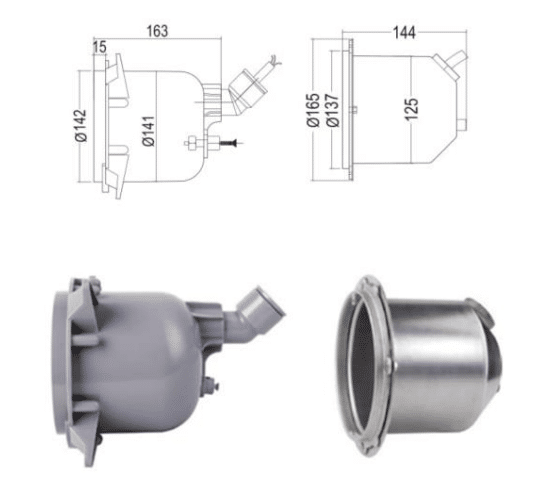

  • can be supplied with or without concrete pool niches (refer images PVC/SS)
  • available in custom cable lengths
  • can replace pentair 640130, 640133, 640135, 640150, 640151, 640152, 640153
  • compatible with pentair niche 79206600, 78243300, 78244200
  • campatible with hayward niche SP0601U, SP060C
  • supplied without power drive

Technical Specification

type

125499100

built

marine grade SS316 / tempered glass

input volt

AC12V (class III)

source

LED 12/18/25W CREE

efficiency

70lm/W (varies with chosen diffuser)

color temp

2700K/4000K/6000K/RGBW

color rendering

Ra>90

optics

60°/90°/120°

control

DALI/0-10V/Mains/DMX (with suitable PSU)

installation

pool

ingress

IP68

impact

IK09

weight

1.5kg

operating temp

-40°c – +50°c

LED life

50,000hrs

cable

0.5M H05RN-F2x1.0mm2

cable gland

IP67 nickel coated copper / SS AISI 316

Ordering Code Key

model

power

CCT

optics

dim

niche

PNT146

12

18

25

27

40

60

R

G

B

60

90

120

DMX

PVC

SS

Coding illustration: PNT146-12-27-60-SS for LED 12W 2700K 60° standard with SS Niche
