ledière™ | redtèk™

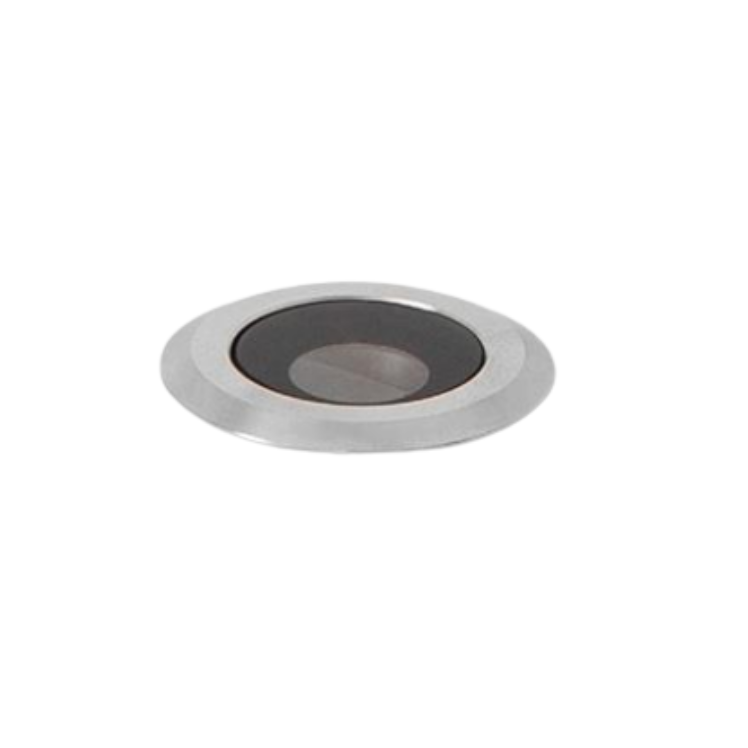

TERRAIN MICRO BESPOKE V50

The Ledeire Terrain Micro V50 is a versatile bespoke outdoor luminaire designed for precision illumination in architectural and landscape applications. Featuring a CREE XPE LED source available in 1W, 2W, or 3W, it offers a wide range of color temperatures from 2700K to 6000K, including red, green, and blue options, with Ra>90 color rendering and 70 lm/W efficiency.

Constructed from marine-grade stainless steel (SS316) and tempered glass, the V50 delivers exceptional durability with IP67 ingress protection and IK09 impact resistance. Its optics range from 10° to 120°, allowing highly customizable beam control, while body design supports seamless integration for ground or ceiling installations.

Operating on DC12–24V (Class III), the V50 supports dimming via Switching, DALI, or 1–10V systems. With a 50,000-hour LED lifespan and reliable performance in temperatures from –40°C to +50°C, this luminaire combines enduring functionality with elegant design.

Supplied with a 0.5m H05RN-F 2×1.0mm² cable and an IP67-rated nickel-coated copper or stainless steel gland, the Terrain Micro V50 ensures easy installation and long-lasting outdoor performance.

  • AISI316 trim with tempered glass (500kg loading)
  • can be customized to R/G/B/Y color requirements
  • supplied without power drive

Technical Specification

type

VBS3237

built

marine grade SS316 / tempered glass

input volt

DC24V (class III)

source

CREE XPE

efficiency

70lm/W (varies with chosen diffuser)

color temp

2700K/3000K/4000K/6000K/RGB

color rendering

Ra>90

optics

5°/10°/15°/36°/50°/bespoke

dimming

switching/DALI/TRIAC/0-10V

installation

ground/ceiling, recessed applications

ingress

IP67

impact

IK09

weight

0.35kg

operating temp

-40°c – +50°c

LED life

50,000hrs

cable

0.5M H05RN-F2x1.0mm2

cable gland

IP67 nickel coated copper / SS AISI 316

Ordering Code Key

model

power

CCT

optics

dim

finish

V50

1

2

3

27

30

40

60

R

G

B

10

15

25

30

40

60

120

S

10V

DA

BS

V50

Looking for a bespoke product? Contact us now. You define We design!
