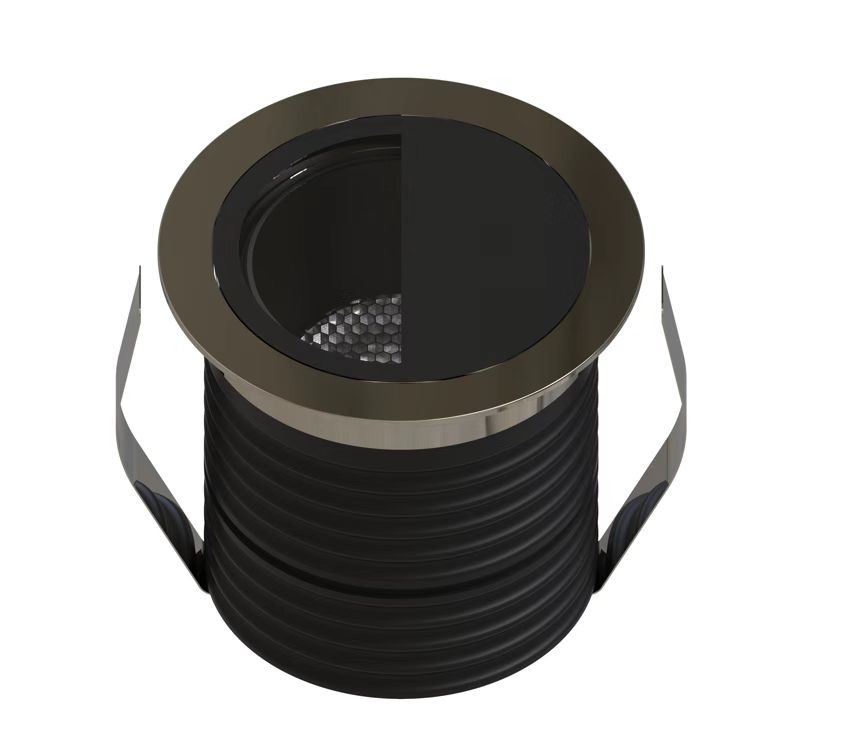

TERRAIN MICRO BESPOKE V84A
The Ledeire Terrain Micro V84A is a premium bespoke outdoor luminaire designed for precision and performance in architectural environments. Powered by a 7W CREE XPE LED, it offers superior illumination with Ra>90 color rendering and customizable beam optics up to 120°.
Crafted from marine-grade stainless steel (SS316) and tempered glass, the V84A ensures exceptional durability and weather resistance with IP67 ingress and IK09 impact protection. Available in multiple diffuser styles (Standard, Half Moon, Honeycomb, or Honeycomb + Halfmoon) and finishes (White, Black, or Custom), it provides complete design flexibility for bespoke projects.
Operating on DC24V (Class III), the V84A supports switching, DALI, TRIAC, and 0–10V dimming systems. With an efficiency of 70 lm/W, a lifespan of 50,000 hours, and reliable operation from –40°C to +50°C, this fixture delivers performance built to last.
Supplied without a power drive, it includes a 0.5m H05RN-F 2×1.0mm² cable and IP67-rated nickel-coated copper or stainless steel gland. Designed for ground or ceiling installations, the Terrain Micro V84A blends elegance with engineering precision.
- available in custom body finishes White, Black or Custom

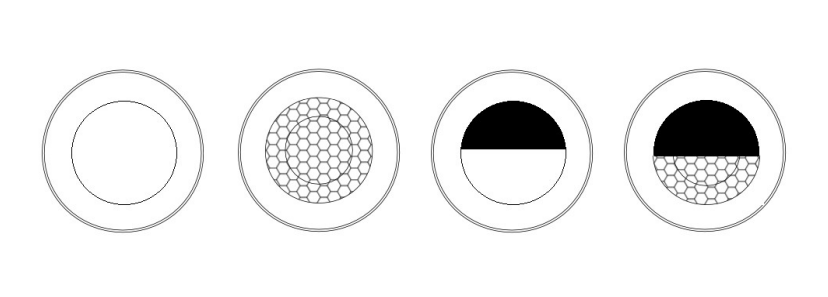

- available in standard (S), half moon (HM), honeycomb (HC) or honeycomb+halfmoon (HCM) diffusers
- supplied without power drive or honeycomb+halfmoon (HCM) diffusers

Technical Specification
type
VBS3219
built
marine grade SS316 / tempered glass
input volt
DC24V (class III)
source
LED 7W CREE XPE
color temp
2700K/3000K/4000K/6000K
efficiency
70lm/W (varies with chosen diffuser)
color rendering
Ra>90
optics
I20°/bespoke
dimming
switching/DALI/TRIAC/0-10V
installation
ground/ceiling
ingress
IP67
impact
IK09
weight
0.35kg
operating temp
-40°c – +50°c
LED life
50,000hrs
cable
0.5M H05RN-F2x1.0mm2
cable gland
IP67 nickel coated copper / SS AISI 316



Ordering Code Key
model
power
CCT
diffuser
finish
V84A
4
5
6
7
27 2700K
30 3000K
40 4000K
60 6000K
R Red
G Green
B Blue
S standard
HM halfmoon
HC honeycomb
HMC honeycomb + halfmoon
W white
B black
S steel
