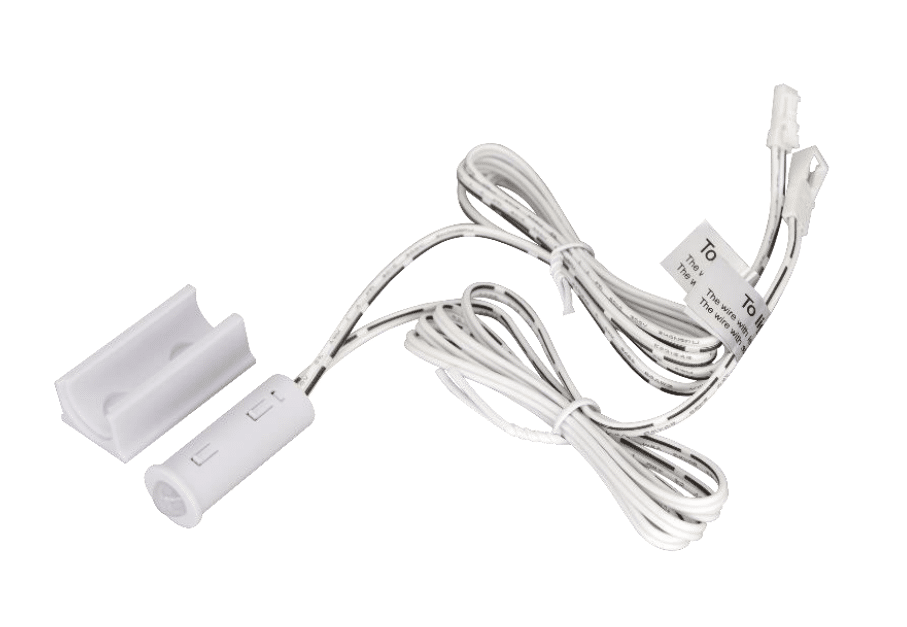

PIR SENSE IRP/1 CONTACTLESS LIGHT SWITCH

The Ledeire PIR Sense IRP/1 is a compact contactless light switch designed with advanced passive infrared (PIR) technology for effortless and hygienic lighting control. A simple motion is enough to trigger the sensor, turning lights ON, while the system automatically switches OFF after the standby duration if no movement is detected.

Precision-engineered for both surface and recessed mounting, the IRP/1 combines discreet design with reliable performance. Its compact form, available in anodized silver as standard, can also be customized in finishes such as white, black, gold plated, chrome plated, and more to match your project’s aesthetic.

Built from durable PVC and engineered to operate on DC12V / DC24V (Class III) input, this switch ensures long-lasting performance and easy integration with modern lighting systems. With a maximum detection range of 3 meters and a power rating up to 60W, the IRP/1 delivers dependable functionality for residential, commercial, and hospitality spaces.

Supplied without a power drive, the device comes with a 1000mm cable for flexible installation.

  • motion triggers sensor
  • motion detection turns light ON
  • light turns OFF if no motion is detected after standby duration
  • supplied without power drive

Technical Specification

type

IRP 1

built

pvc

input volt

DC12V / DC24V (class III)

max power

60W

current rating

3 A

max detection range

3 m

ngress

IP20

mounting

surface / recessed

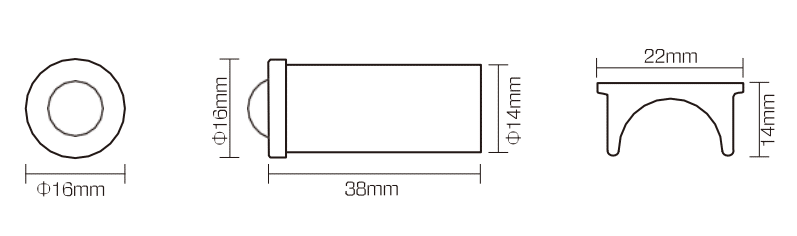

size (surface)

W22mmxD40mmxH14mm

size (recessed)

Ø16x38mm cutout Ø14x40mm

cable length

1000mm

Ordering Code Key

model

color

IRP / 1

W

B

IRP/1

Looking for a bespoke product? Contact us now. You define We design!
